Illuminating Precision with Triple Fluorescent Channels

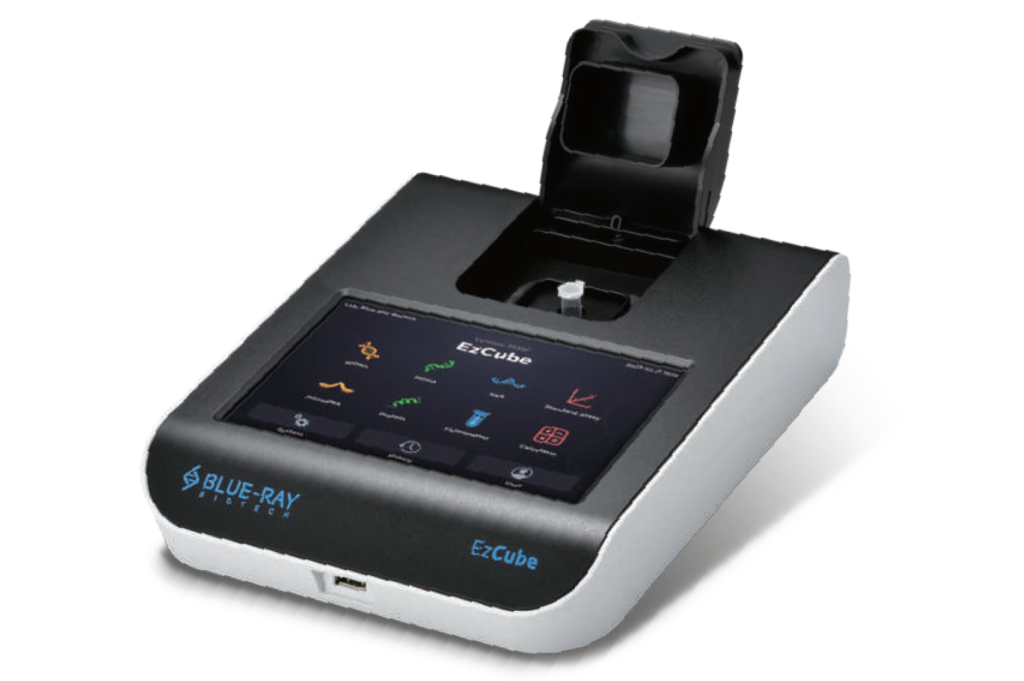

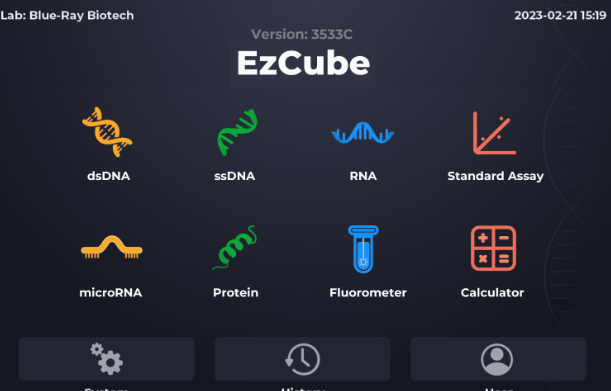

EzCube Fluorometer features triple fluorescent channels and offers high-sensitivity and specific quantification of nucleic acids and proteins. It accurately measures low concentration samples as small as 1 μl, making it ideal for demanding applications, including NGS. Combined with dedicated EzQuant quantification assays, an intuitive touchscreen and USB connectivity, EzCube simplifies your precision quantification processes and makes them easy.
|
Dynamic Range |
5 orders of magnitude |
|
Light Sources |
Blue LED (max ~480 nm) Red LED (max ~630 nm) Green LED (max ~535 nm) |
|
Excitation Filters |
Blue (430 - 495 nm) Red (600 - 645 nm) Green (490 - 535 nm) |
|
Emission Filters |
Blue (510 - 580 nm) Red (665 - 720 nm) Green (564 - 650 nm) |
|
Detectors |
Photodiodes; measurement capability from 320 - 1,100 nm |
|
Tube Type |
0.5 ml polypropylene thin wall PCR tubes |
|
Operating System |
Custom Linux based OS |
|
Display |
7” touch screen, 1,280*800 TFT-LCD |
|
Connectivity |
USB-A port x2 (Data output) |
|
Dimensions |
196 mm x 248 mm x 68 mm (7.7 x 9.8 x 3.4 in.) |
|
Weight |
1 kg (2.2 lb.) |
|
Glove Compatibility |
All common lab gloves |
|
Internal Storage |
32 GB flash memory |
|
Operating Voltage |
Input: AC 100 - 240 V, 50/60 Hz; Output: DC 12 V, 3 A |
|
Certification |
CE |
