FastGene FAS-X

Camera:

Camera sensor type: Scientific-grade CMOS

Image resolution: 20 MPixel (5472 px x 3648 px)

Color depth: 8-Bit or 12-Bit

Image format: JPEG, TIFF, PNG, BMP

Exposure time: 13 µs to 10 sec



Hood:

Material: Coated aluminum

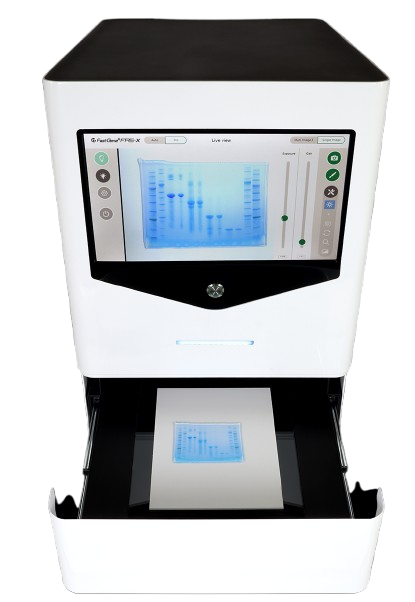

Access: Soft close loading drawer

Filter: Amber camera filter, amber goggles

Status LED: Installed in the front



Footprint:

Dimensions (H x D x W): 53.2 cm x 44.3 cm x 37.5 cm

Weight: 20 kg



Display, Software, Connections:

Display: 13” full HD glove compatible touchscreen

Display resolution: 1920 px x 1080 px

Internal storage: 128 GB

Connections: LAN, 3x USB 3.0

Software: FAS-X imaging software

Rated voltage: 100-240 V, 50/60 Hz for the power adapter

Output: 24 V, 6 A



Light sources:

Light sources: Blue/Green LED transilluminator (built-in light), White LED room light (integrated Epi white light), White LED transilluminator (external white light plate, see accessories below)

Transilluminated area: 26 cm x 21 cm

Blue/Green LED light: 470-520 nm



Accessories:

External white light transilluminator: Build-in battery or power supply via USB port, Dimensions: 29 cm x 20 cm x 0.8 cm, View area: 22 cm x 16 cm, LEDs: Daylight LEDs, color temp.: 5000 K, CRI = 95, Weight: 570 g

Amber goggle: 1 piece

Power adapter: 1 piece

DNA/RNA Gel Imaging: Ideal for imaging gels stained with DNA or RNA fluorescent dyes.

Protein Gel Imaging: Suitable for imaging protein gels stained with fluorescent or colorimetric stains.

Western Blot Imaging: Can capture high-resolution images of western blot membranes.

Bacterial Colony Imaging: Used for imaging bacterial colony plates
