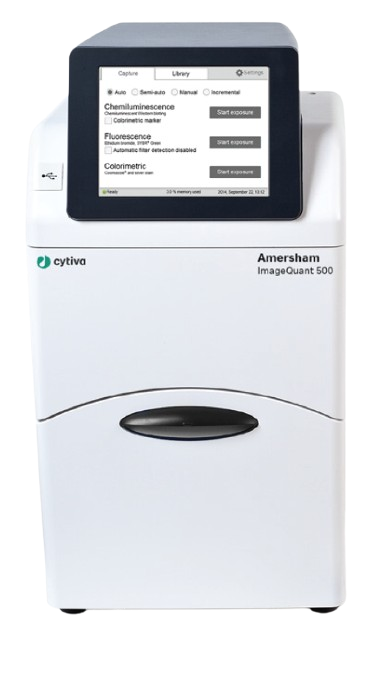

Amersham ImageQuant™ 500 Biomolecular Imager

Cooling down Time:

<5 min

Dimensions:

300 (W) × 570 (H) × 280 (D) mm

Dynamic Range:

4.8 orders of magnitude

Exposure Time:

1/10 to 1 h*

Frequency:

50/60 Hz

Humidity:

15% to 70% (no condensation)

Image Output:

Grayscale 16-bit (.tiff), Color image (.jpg)

Input Voltage:

100 to 240 V

Interface:

USB 2.0, Ethernet

Lens Model:

F1.4/30 mm

Light Source:

UV epi-light: 365 nm, Blue epi-light: 460 nm, White epi-light: 470 to 635 nm

Operating Temperature:

15°C to 28°C

Operation:

Fully automated (auto exposure, no focus or other adjustment or calibrations are required)

Power:

200 W

Sample Size:

105 × 105 mm

Sensor Type:

Peltier cooled, 8.3-megapixel CCD

Software:

ImageQuant™ TL
