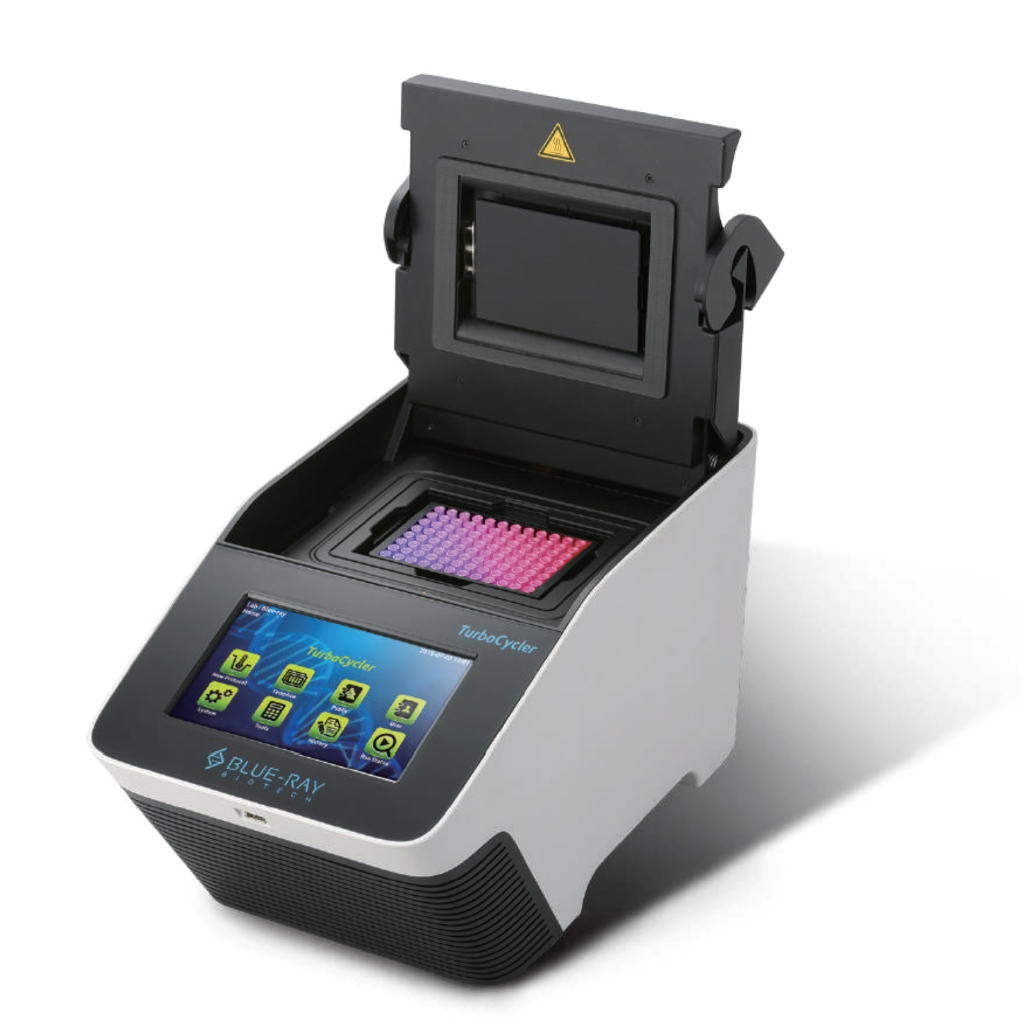

TurboCycler 2

Overview

TurboCycler 2 thermal cycler is designed specifically to enhance PCR efficiency and accuracy. It is equipped with a 7” sensitive touchscreen and a friendly graphic user interface, which makes operation highly intuitive. With flexible ramp rate and gradient temperature control, TurboCycler 2 greatly increases PCR accurate optimization. The Wi-Fi function enables you to monitor the PCR run status anytime remotely with walk-away convenience.

˗ Flexible Ramp Rate Control: from 0.1 - 5.5 ℃/sec to meet the need for the CRISPR related assays.

˗ Fully Adjustable Lid Temperature: can be set between 35 and 120 °C for virtually any type of experiment including NGS pre-treatment.

˗ Gradient Optimization: range from 1 to 30 °C enables optimal experimental conditions in a single PCR run.

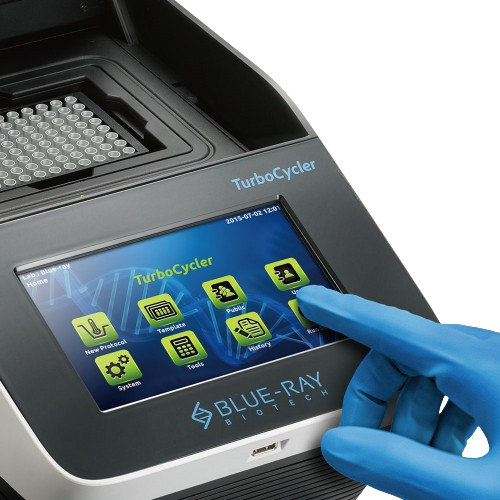

˗ Easy to Control: The sensitive 7” capacitive touchscreen enables easy operation even with laboratory gloves.

˗ Friendly User Interface: The graphic interface is easy to use, making the adjustment of experiment parameters such as temperature, time and cycle quick and simple.

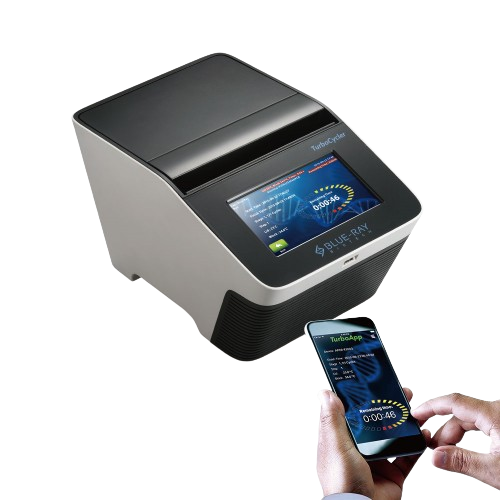

˗ Efficient Remote Monitoring: Monitor your PCR status remotely anytime on your mobile device via the free TurboApp.

Specifications

Sample Block: 96 Well,

Gradient Block: Compatible with regular profile or low profile 0.2 ml PCR tube, strip, non- skirted, semi-skirted and full-skirted 96-well plate

Block Temperature Range: 4.0 - 100 °C

Max. Heating Rate: 5.5 °C/sec

Max. Cooling Rate: 3.3 °C/sec

Temperature Accuracy: +/- 0.3 °C

Temperature Uniformity Across Block: +/- 0.3 °C

Adjustable Ramp Rate: 0.1 - 5.5 °C/sec

Gradient Direction: Horizontal across the block

Gradient Temperature Range: 30 - 100 °C

Gradient Temperature Difference: Max. span 30 °C

Temperature Setting Range: 35 - 120 °C or off

Temperature Accuracy: +/- 1.0 °C

Display: 7” color LCD with capacitive touch panel

Data Port: 1 USB Type-A front port for USB flash drive

Heated Lid: 35 - 120 °C or off

Auto Restart after Power Outage: Yes

Remote Monitoring via Wi-Fi: Optional

Footprint Dimensions (H x W x D): 225 mm x 245 mm x 415 mm

Weight: 9.5 kg

Power Supply: AC 100-240 V, 50/60 Hz, 750 W

Certification: CE, RoHS

Software:

Portability of Protocols: Save and transfer to computer or TurboCycler 2 via USB flash drive

Stored Program No.: > 4000 sets

Registered User Folder No.: 100 sets

User Folder Password Protection: Yes

Run Status Report: Yes, HTML output and transfer via USB flash drive

Real-time Temp. Profile Export: Yes, CSV output and transfer via USB flash drive

Tools: Tm calculator, Copy number convertor, Master mix preparation wizard

Applications

PCR Optimization: Quickly optimize PCR conditions for new experiments.

CRISPR/Cas Assays: Suitable for assays requiring precise temperature control.

General PCR Applications: Ideal for routine PCR tasks in research and diagnostic laboratories
