MinION Mk1D

A powerful, palm-sized sequencer for anyone, anywhere

Overview

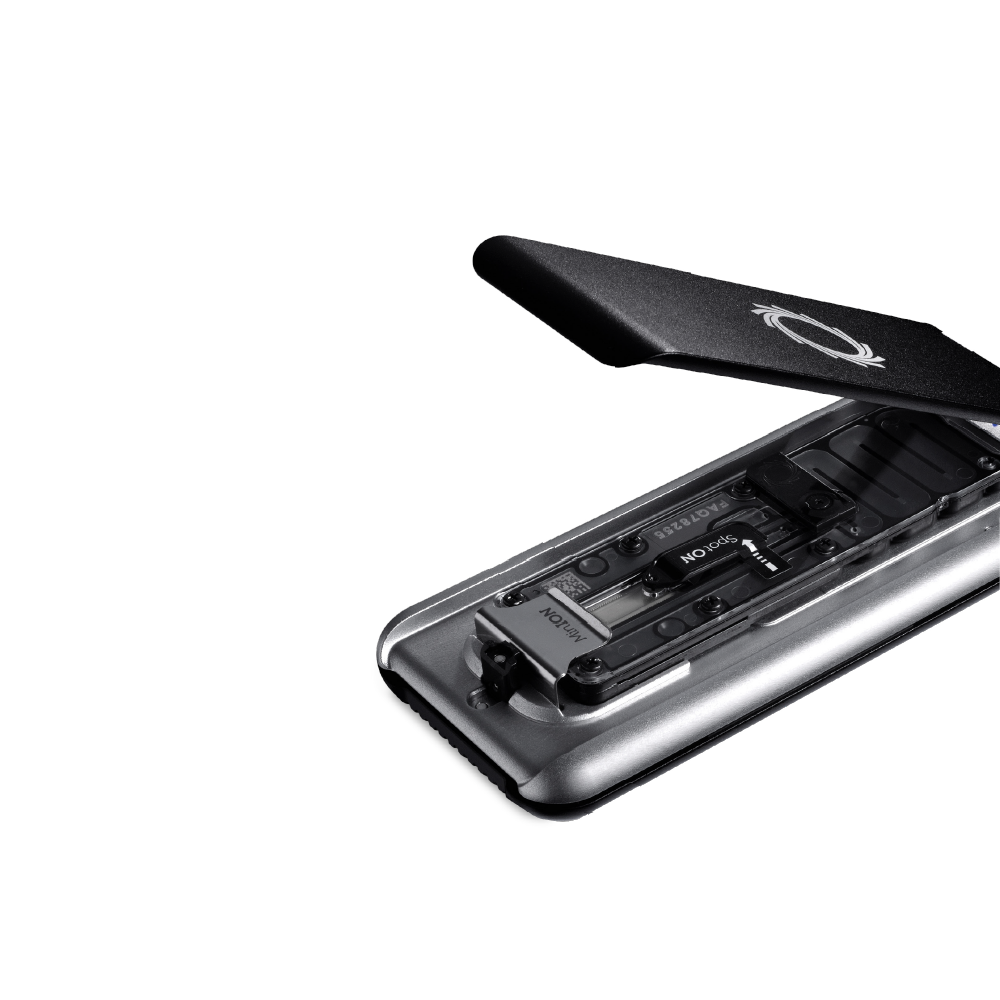

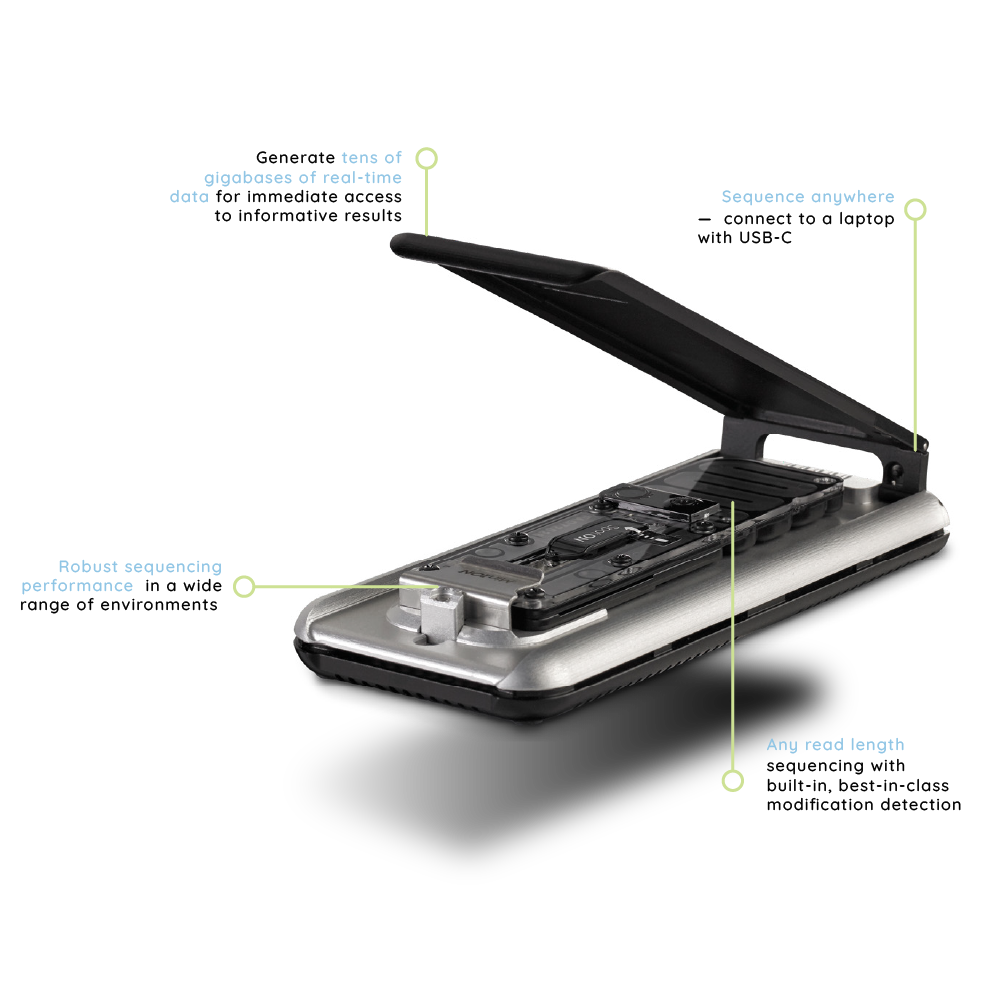

The MinION™ Mk1D is a compact, portable nanopore sequencing device designed to bring sequencing to the sample. It must be connected to a computer for power and sequencing control is via the MinKNOW™ software. MinKNOW manages key sequencing tasks, including:

  • Data acquisition and real-time analysis
  • Data streaming and device control
  • Run parameter selection
  • Sample identification and tracking

In addition to collecting raw nanopore signal data, MinKNOW includes a basecalling algorithm
that converts this signal into DNA or RNA sequences using machine learning.

Specifications

Component

Specification

Size and Weight

H 13 × W 55 × D 125 mm; 130 g

Maximum rated power

7.5 W

Installation ports

1 × USB Type-C

Software installed

MinION driver

Sequencing temperature

Designed for sequencing at environmental temperatures of +10°C to +35°C*

Heat output

25.6 BTU/hr maximum

Installation requirement

Maintain a minimum 5 cm clearance on all sides of the device except the base. Do not place the device on top of a laptop or other heat source.

Applications

Advanced DNA separation
